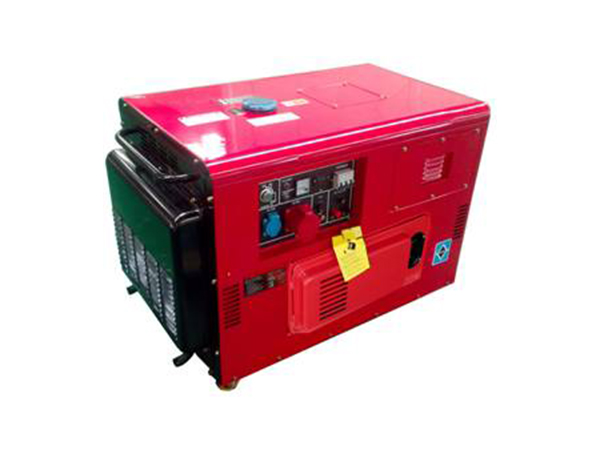

Silent Diesel Generator
Quiet Diesel Generator, Silent Diesel Generator for Home Use, Portable Diesel Generator
Powered by Winsun diesel engine, our silent diesel generator is distinguished for low oil consumption, small emission, high reliability, and low noise. It has a low temperature in inner cavity. The power of the diesel generator set won’t decline.
Optional devices:
Automatic transfer switches, R485 standard interface, electric fuel pump, cold start

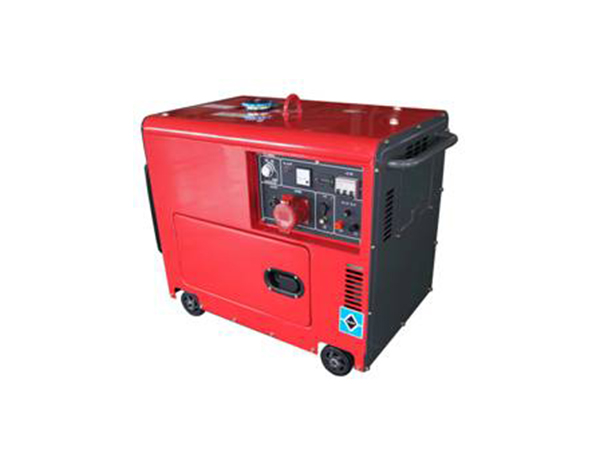

Silent Diesel Generator, WS6500/WS7500/WS8500
| Model | 6500 | 7500 | 8500 | ||||
| Rated frequency (Hz) | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | |
| Rated power (KVA) | 4.5 5.0 | 5.6 6.3 | 5.2 5.5 | 6.5 6.9 | 6.0 6.5 | 7.5 8.1 | |
| Max power (KVA) | 5.0 5.5 | 6.2 6.9 | 5.5 6.0 | 6.9 7.5 | 6.5 7.0 | 8.1 8.6 | |
| Rated voltage (A.C) (V) | 230/115 240/120 | 400/230 416/240 | 230/115 240/120 | 400/230 416/240 | 230/115 240/120 | 400/230 416/240 | |
| Rated current (A) | 19.6/39.1 20.8/41.7 | 8.1 8.7 | 22.6/45.2 22.9/45.8 | 9.4 9.6 | 26.1/52.2 27.1/54.2 | 10.8 11.2 | |
| Phase | single phase | 3-phase | single phase | 3-phase | single phase | 3-phase | |
| Power factor (cosφ) | 1 | 0.8 (lag) | 1 | 0.8 (lag) | 1 | 0.8 (lag) | |
| Insulation class | F | ||||||
| Pole quantity | 2 | ||||||
| Motor excitation mode | self-excited with constant voltage (with AVR) | ||||||

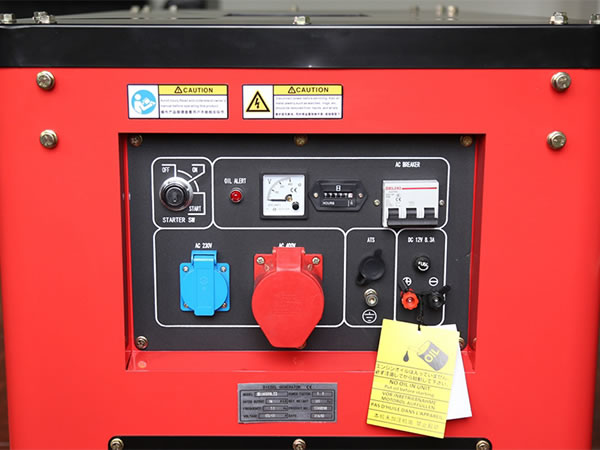

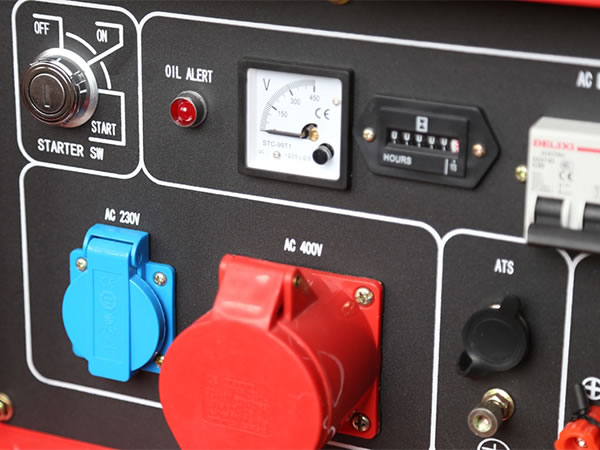

| Output socket | 2 single-phase sockets | 3-phase and single-phase sockets | 2 single-phase sockets | 3-phase and single-phase sockets | 2 single-phase sockets | 3-phase and single-phase sockets | |
| DC12V output | 12V, 8.3A | ||||||
| Dimension: L ×W ×H (mm) | 915×550×740 (integral) 970 × 550 × 750 (divided) | ||||||
| Net weight (kg) | 171 (integral) 180 (divided) | ||||||
| Noise (7m) dB (A) | 72 | ||||||
| Engine model | WS186FA | WS188FB | WS192FA | ||||
| Engine type | single cylinder, air-cooled, 4-stroke, direct injection | ||||||
| Cylinder quantity-cylinder diameter × stroke (mm) | 1-86 ×72 | 1-88 ×75 | 1-92 ×72 | ||||
| Total displacement (ml) | 418 | 456 | 498 | ||||
| Compressed ratio | 20:1 | ||||||
| Cooling way | air-cooled | ||||||
| Lubrication style | force-feed and splashing system | ||||||
| Starting way | electrically | ||||||
| Fuel | 0 #(summer) -10 #(winter) - 35#(cold winter) light diesel | ||||||
| Lubrication oil | SAE10W30 (CD grade or above) | ||||||
| Engine oil capacity (L) | 1.65 | ||||||
| Starting motor power (V-kW) | 12V 0.8KW | 12V 1.2KW | |||||
| Engine power (V-A) | 12V 8.3A | ||||||
| Battery capacity (V-Ah) | 12V 30AH | ||||||
| Fuel consumption under full load ( L/H) | 1.8 2.2 | 1.8 2.2 | 2.4 2.8 | 2.4 2.8 | 2.6 3.0 | 2.6 3.0 | |
| Fuel tank capacity (L) | 16L | ||||||
| Continuous running time (H) | 8.9 6.4 | 8.9 6.4 | 6.7 5.7 | 6.7 5.7 | 6.2 5.3 | 6.2 5.3 | |

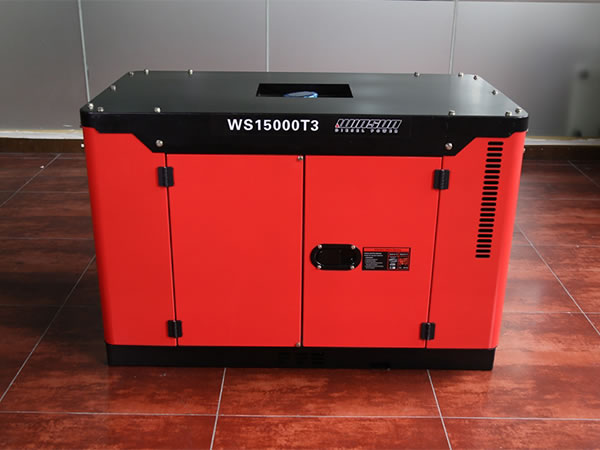

Silent Diesel Generator, WS12000/WS15000/WS16500
| Model | 12000 | 15000 | 16500 | |||
| Rated frequency (Hz) | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 | 50 60 |
| Rated power (KVA) | 8.8 9.5 | 11 12 | 10 10.5 | 12.5 13 | 10.5 11.5 | 13.1 14.4 |
| Max power (KVA) | 9.5 10.5 | 12 13 | 11 11.5 | 13.5 14 | 11.5 12.5 | 14.4 15.6 |
| Rated voltage (A.C) (V) | 230 240 | 400/230 416/240 | 230 240 | 400/230 416/240 | 230 240 | 400/230 416/240 |
| Rated current (A) | 38.3 39.6 | 15.9 16.5 | 43.5 43.8 | 18.0 18.0 | 45.7 47.6 | 18.9 20 |
| Phase | single phase | 3-phase | single phase | 3-phase | single phase | 3-phase |
| Power factor (cos φ) | 1 | 0.8 (lag) | 1 | 0.8 (lag) | 1 | 0.8 (lag) |
| Insulation class | F | |||||
| Pole quantity | 2 | |||||
| Motor excitation mode | self-excited with constant voltage (with AVR) | |||||
| Output socket | single-phase socket and wiring terminal | 3-phase and single-phase sockets | single-phase socket and wiring terminal | 3-phase and single-phase socket | single-phase socket and wiring terminal | 3-phase and single-phase sockets |
| DC12V output | 12V,8.3A | |||||
| Dimension: L ×W ×H (mm) | 1095×640×780 (integral) 1300×620×880 (divided) | |||||
| Net weight (kg) | 245 (integral) 268 (divided) | |||||
| Noise (7m) dB (A) | 70 | |||||
| Engine model | R2V840 | R2V870 | WS910 | |||
| Engine type | V-twin, 4-stroke, air-cooled, direct injection | |||||
| Cylinder quantity-cylinder diameter × stroke (mm) | 2-86 ×72 | 2-88 ×72 | 2-88 ×75 | |||
| Total displacement (ml) | 836 | 870 | 910 | |||
| Compressed ratio | 20:1 | |||||
| Cooling way | Air-cooled | |||||
| Lubrication style | force-feed and splashing system | |||||
| Starting way | Electrically | |||||
| Fuel | 0 #(summer) -10 #(winter) - 35#(cold winter) light diesel | |||||
| Lubrication oil | SAE10W30 (CD grade or above) | |||||
| Engine oil capacity (L) | 2.3 | |||||
| Starting motor power (V-kW) | 12V 1.4KW | |||||
| Engine power (V-A) | 12V 8.3A | |||||
| Battery capacity (V-Ah) | 12V 45AH | |||||
| Fuel consumption under full load (L/H) | 3.5 4.0 | 3.5 4.0 | 4.2 4.8 | 4.2 4.8 | 4.8 5.2 | 4.8 5.2 |
| Fuel tank capacity (L) | 21L | |||||
| Continuous running time (H) | 6.0 5.3 | 6.0 5.3 | 5.0 4.4 | 5.0 4.4 | 4.4 4.0 | 4.4 4.0 |
