Portable Fire Pump
Diesel Powered Fire Pump, Fire Fighting Pump, Firewater Pump, Pump for Home Fire Fighting
Technical Parameters of Fire Pump (BJD10A, BJD18 Series)
| Model | BJD10A | BJD18 | |
| Water pump inlet | joint type | spiral type | |
| joint caliber | 65mm | 80mm | |
| Water pump outlet | joint type | tooth type | |
| joint caliber | 65mm | ||
| Rated flow (L/min) | ≥500 | ≥1000 | |
| Max flow (L/min) | ≥750 | ≥1400 | |
| Outlet pressure (MPa) | 0.55 | 0.65 | |
| Max pressure (MPa) | 0.6 | 0.75 | |
| Priming time (s) | ≤20 | ≤25 | |
| Max vacuum pressure (Mpa) | ≥0.085 | ||
| Starting way | manually/electrically | electrically | |
| Max depth of sucking (m) | 7 | ||
| Net weight (Kg) | ≤75 | ≤105 | |

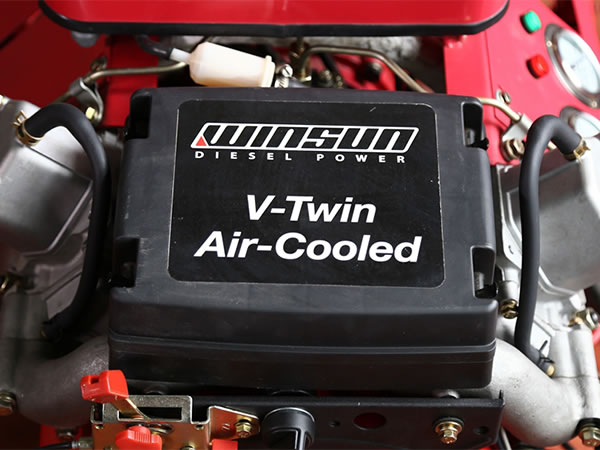

| Engine model | WS188FB | R2V870 | |
| Dimension: L ×W ×H (mm) | 640 ×600 ×560 | 650 ×610 ×650 | |
