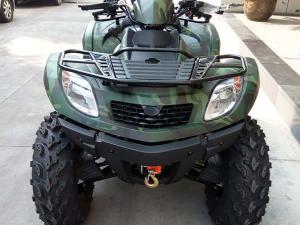

All-Terrain Vehicle (ATV)
Off-Road Vehicle, Car Gearbox Assembly, Car Transmission Assembly, Gearbox Assembly for Vehicles

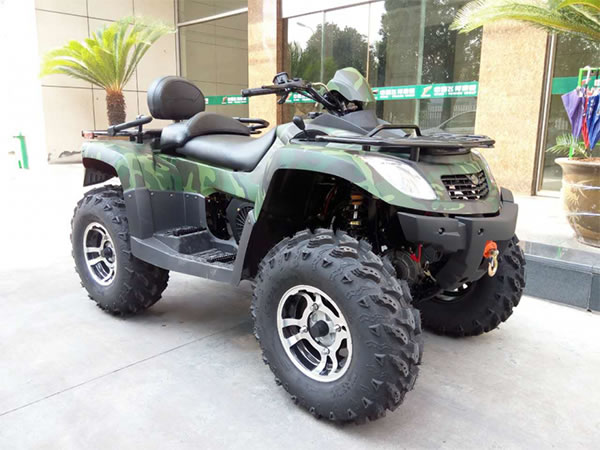

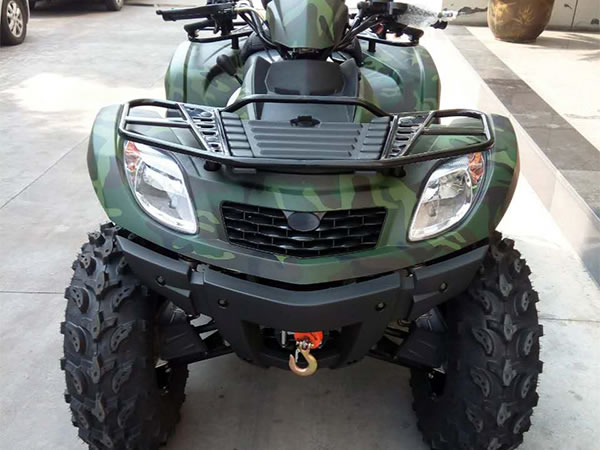

All-terrain vehicle (ATV) is designed to handle almost any range of terrain. When it comes to the roads too hard for common vehicles to drive on, ATV is an ideal. ATV is a kind of off-road vehicle generally comes with open-air mode. It can drive easily on beach, river bed, forest road, stream, and even desert.
Parameters of ATV, WSQ910| Model | WSQ910 | |
| Vehicle type | all-terrain vehicle with twin-cylinder diesel engine | |
| Dimension (mm) | 2016×1180×1237 | |
| Wheel space | 1271mm | |
| Ground clearance | 300mm | |
| Curb weight/kerb weight | 420 | |
| Max speed | 40Km/h | |
| Braking distance | ≤7m/30km/h | |
| Max climbing capacity | 25° | |
| Turning radius | 3280mm | |
| Engine model | WS910 | |

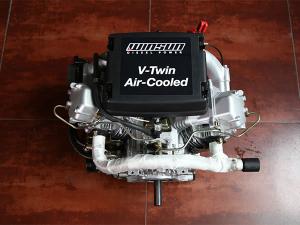

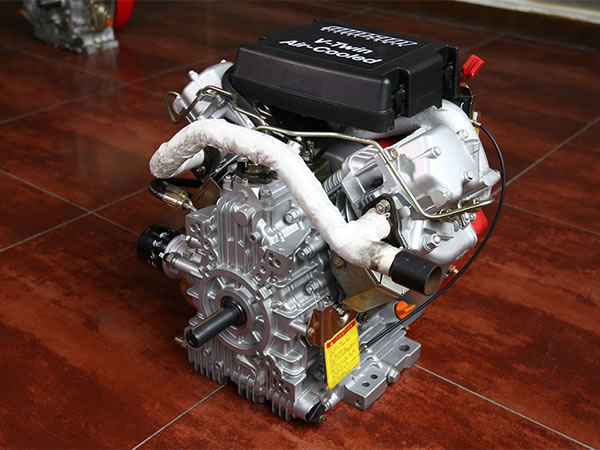

| Engine type | 4-stroke, V-twin, air cooled | |
| Displacement | 910ml | |
| Rated power | 15KW/3600rpm | |
| Max torque | 52N.m/2600rpm | |
| Starting method | electrically | |
| Method of ignition | Compression ignition | |
| Spark plug type | / | |
| Carburetor type | / | |
| Clutch type | auto dry clutch | |
| Gearbox type | CVT | |
| Transmission style | shaft drive | |
| Fuel tank capacity | 20L | |
| Tire specifications | front wheel | rear wheel |
| AT26×8-12 | AT26×10-12 | |
| Brake type | front wheel | rear wheel |
| disc brakes | disc brakes | |
